Mitro Industries is one of the leading manufacturers and suppliers of PVC encapsulated rungs - Mitro PVC footsteps, specially designed for use in water wells, overhead water tanks,
No Ratings
1000
PCS in stock
Construction Equipment
Mumbai
18% Tax
MIMPFR07
Product Video
Description
Reviews(0)

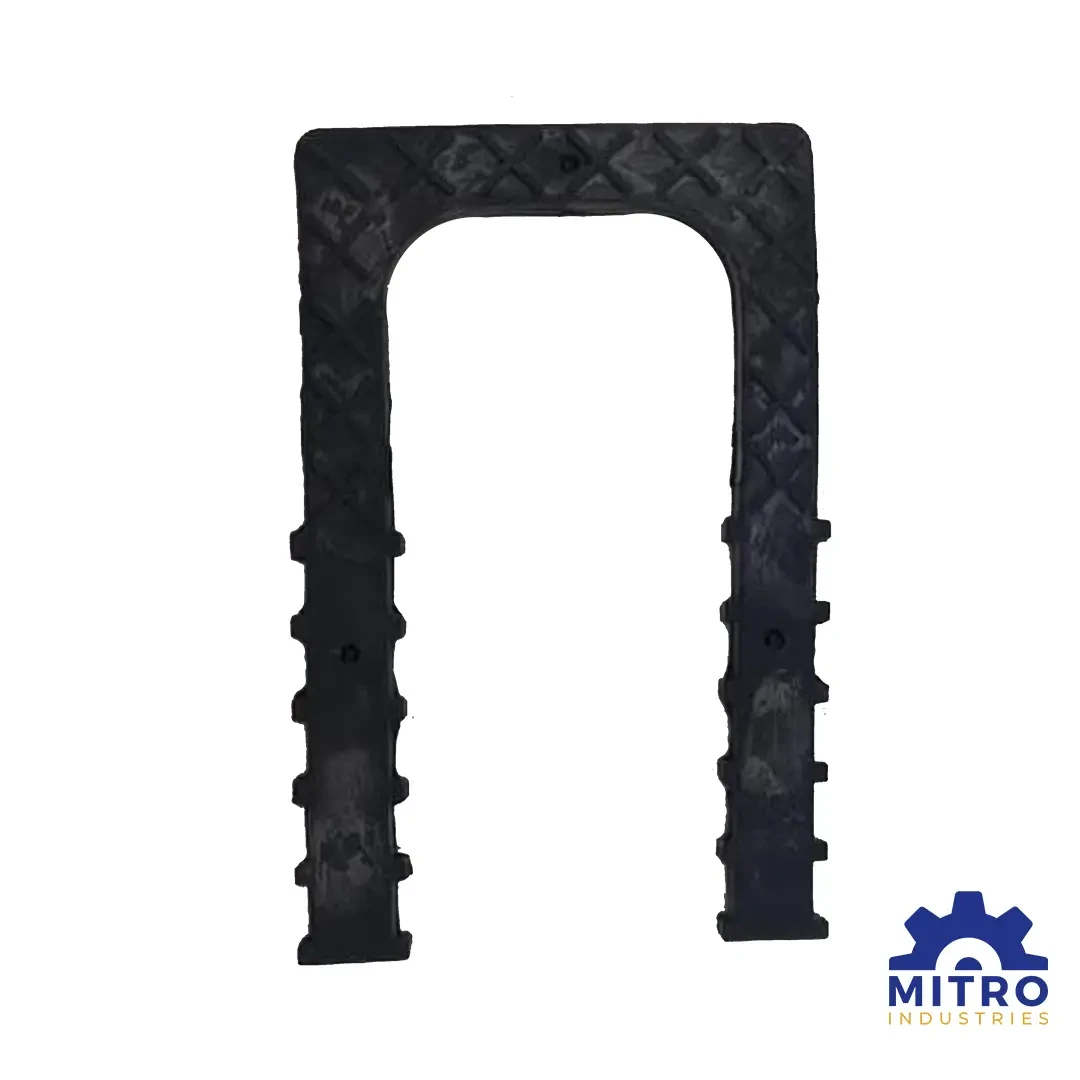

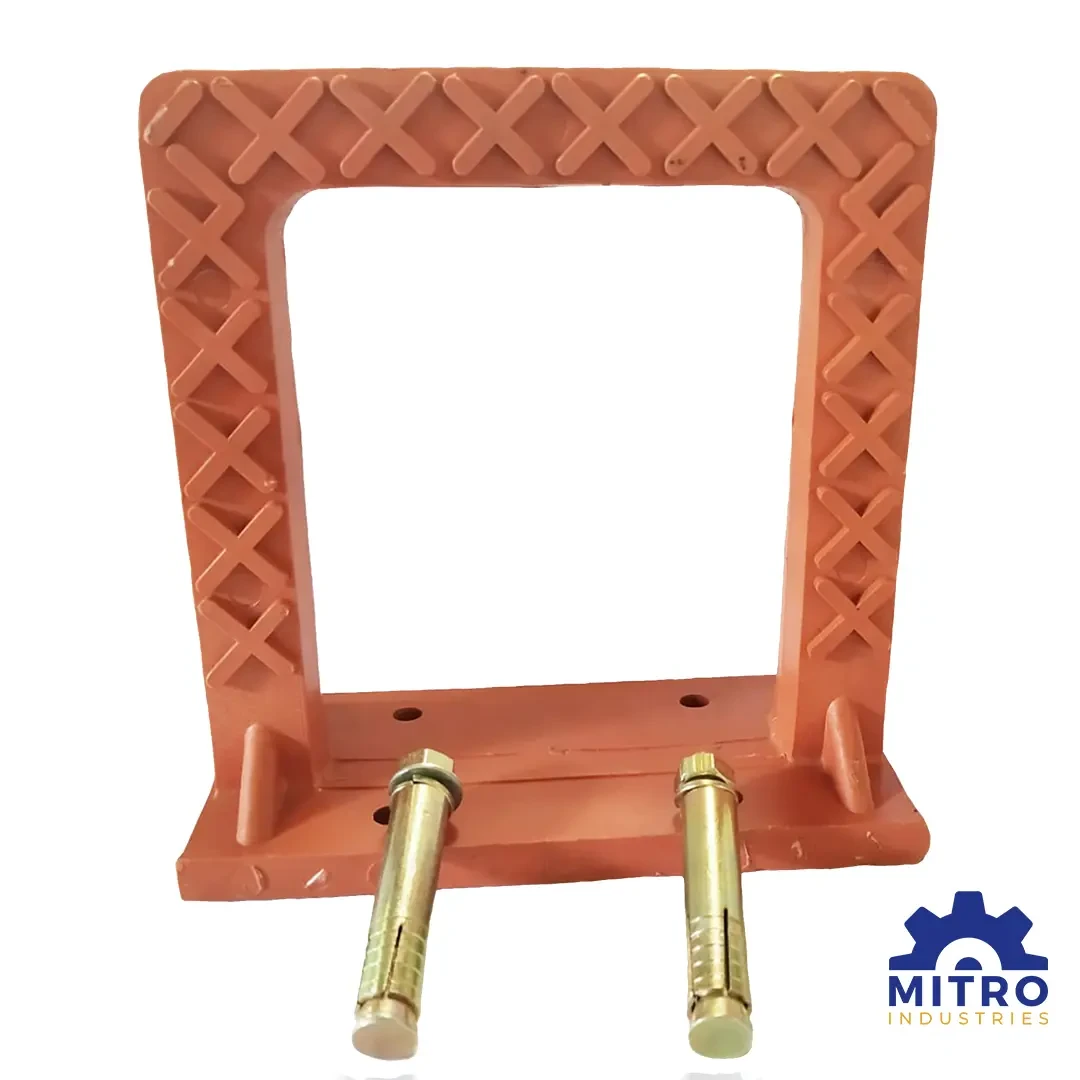

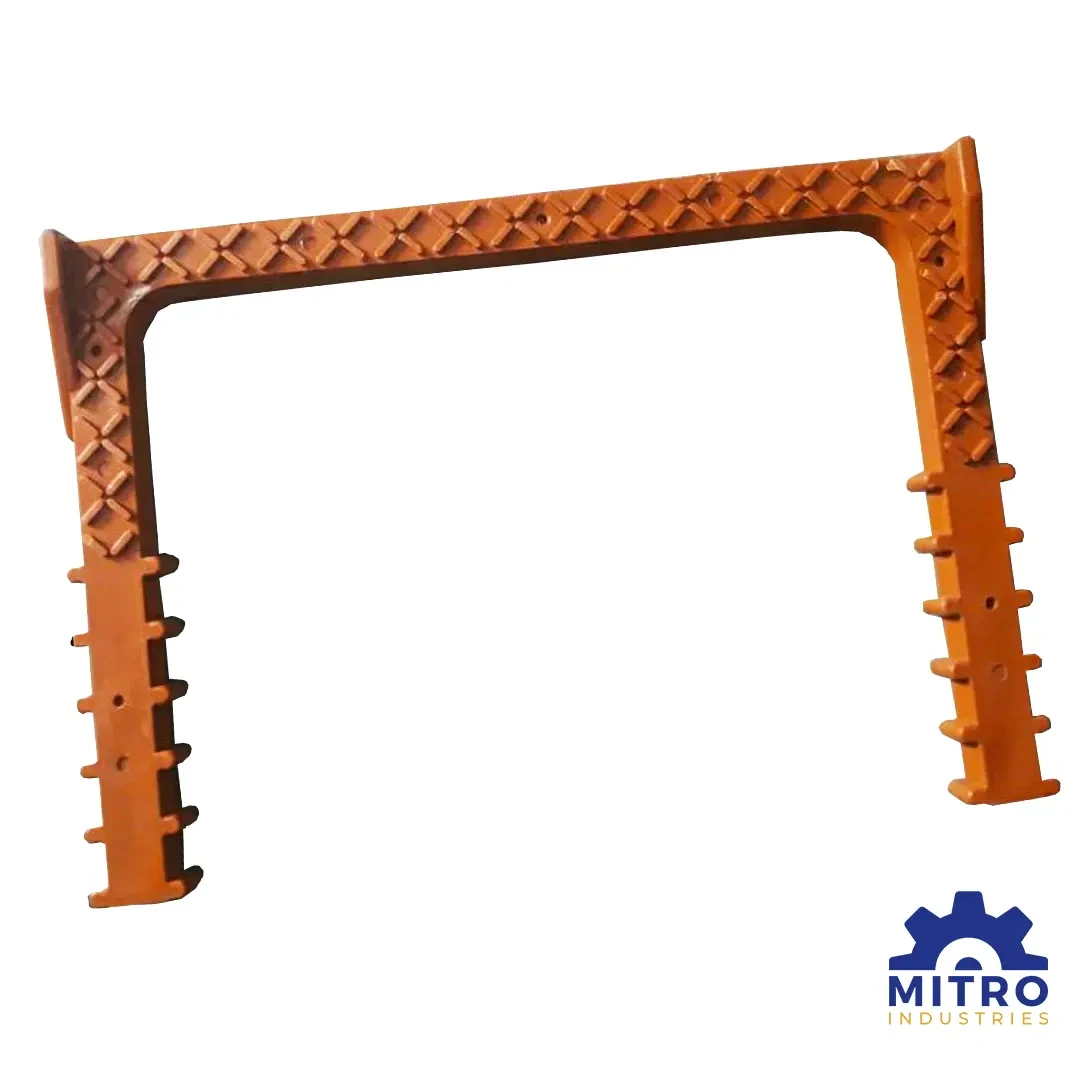

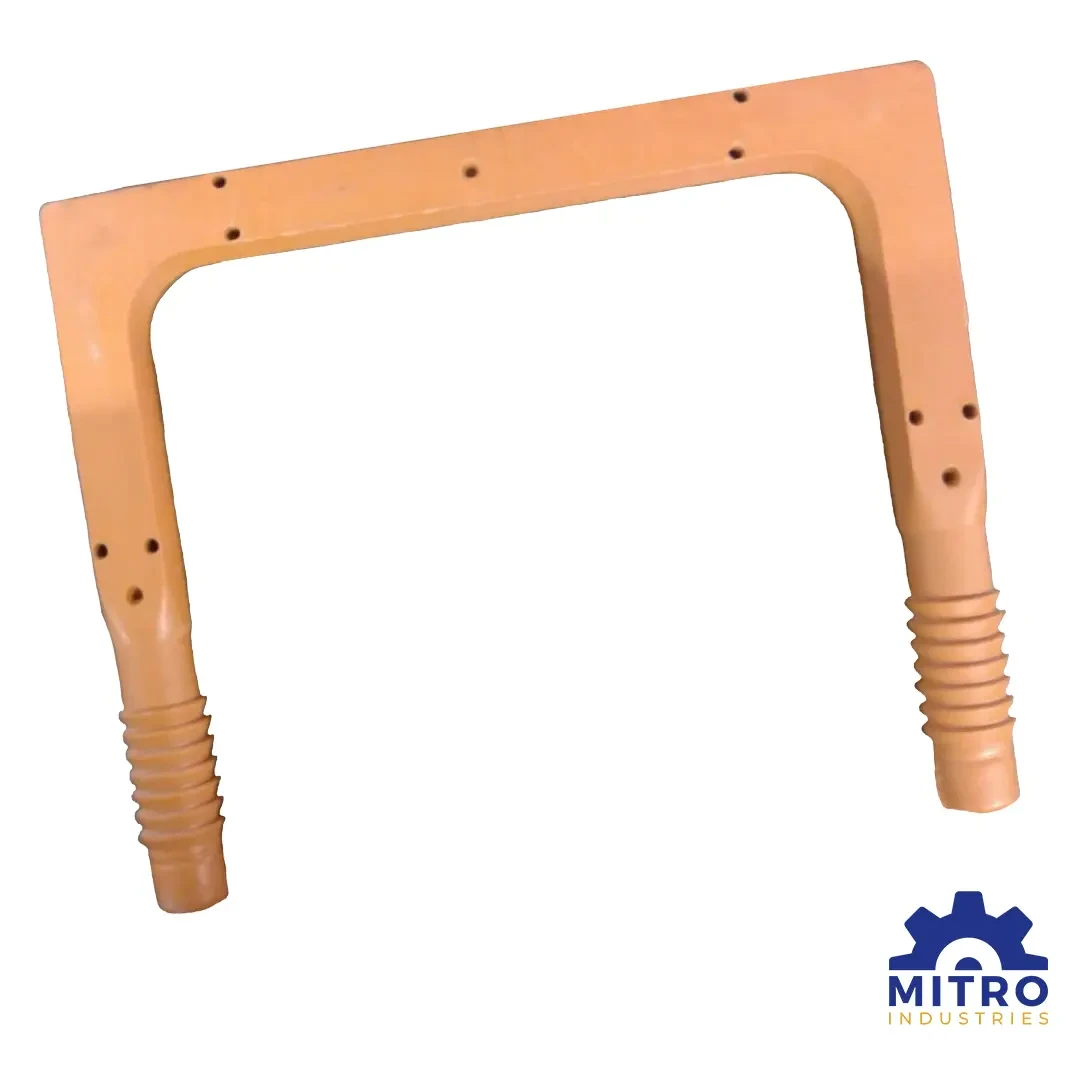

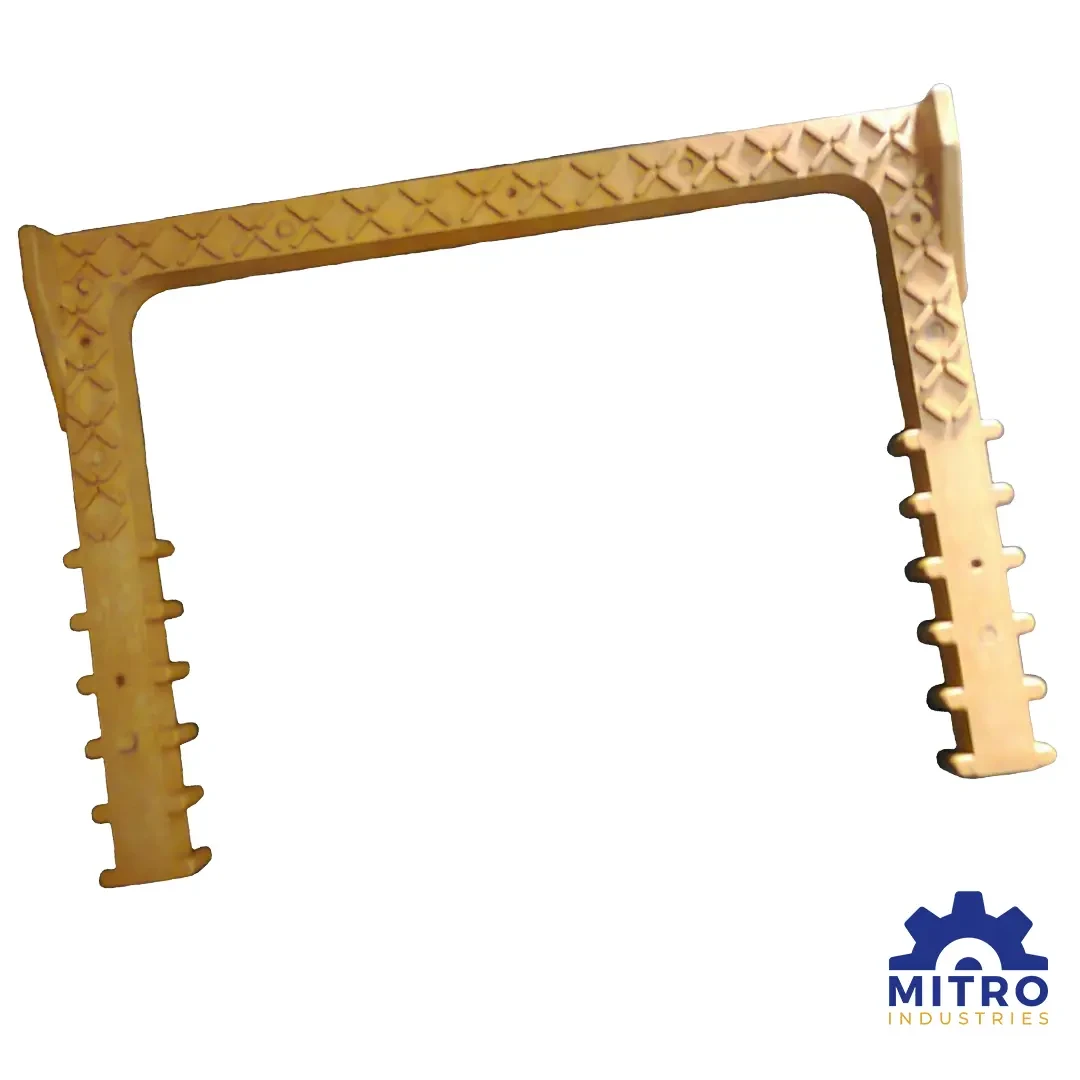

We manufacture customized PVC encapsulated rungs with premium quality materials. And, to ensure workmens safety, our PVC Rungs provide a firm grip while climbing the rungs.
Specification Material used.
MS rod sizes of PVC Rungs are available in different sizes such as 8mm, 10mm 12mm.
PVC Encapsulated Rungs are manufactured as per IS standards.
Available in Orange Black colour.
PVC Encapsulated Rungs are manufactured with PVC Material.
Properties.
High Density.
High Toughness.
High elongation at break.
Very good electrical and dielectric properties.
Very low water absorption.
Low steam permeability.
Good protection against stress cracking.
Soft surface.
Natural color is not weather-resistant.

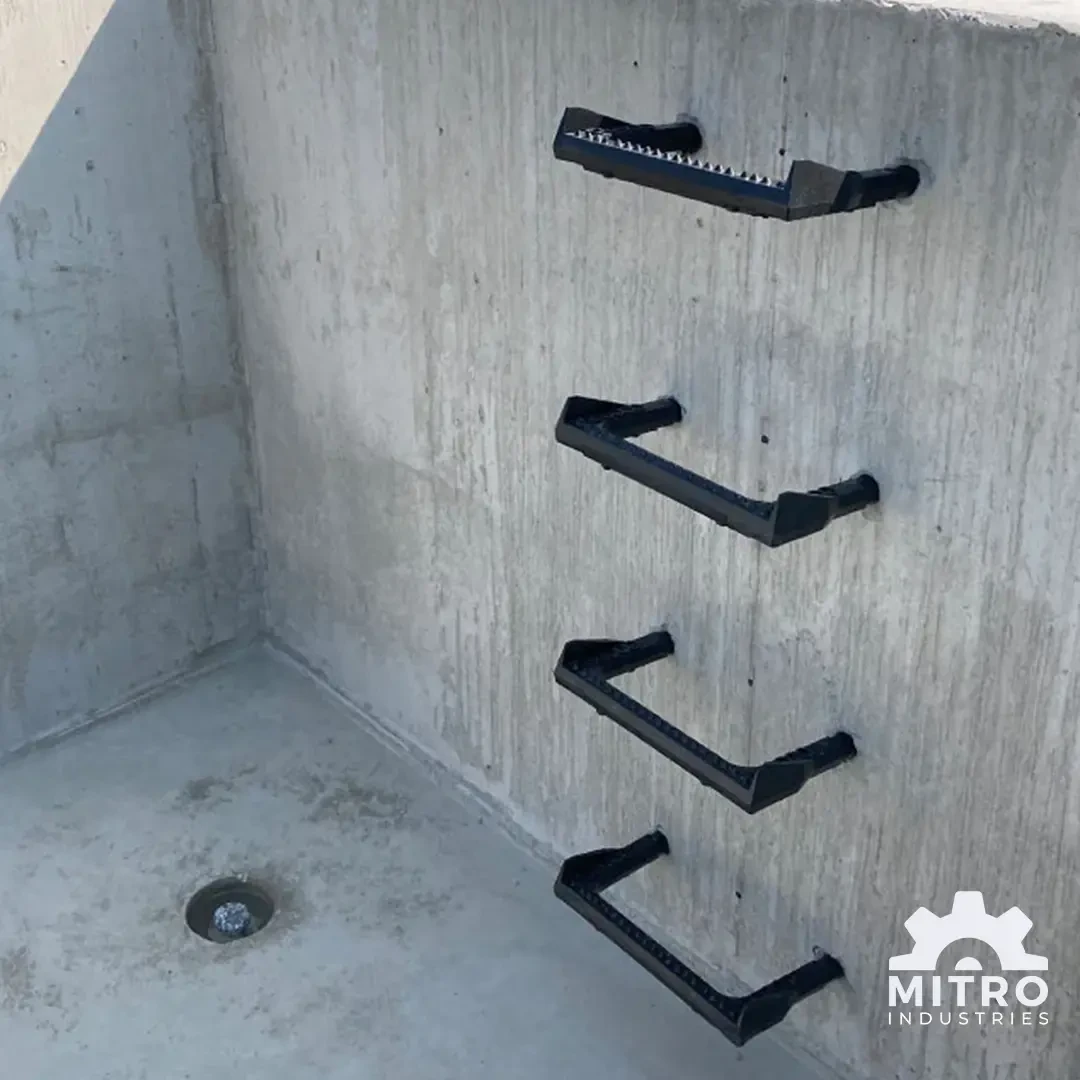

Installation of Footstep Rungs.
Materials required for installation -
Graduated rule of the bubble level.
Nylon hammer.
Any manhole step along with our Eco Pate or Pate Sugar range.
Drill bit for concrete or corrugated steel of 25 mm diameter.
Marker pen and meter.
Step 1
Following the bubble level rule, we mark the ends where the rungs will be installed. The distance will vary d on the model.
Step 2
Repeat step 1 for each step. Maintaining a distance of 2350mm between each step is recommended.
Step 3
Drill the concrete depending on the markings using a 25mm diameter drill to a depth of 850mm, creating a precise hole to fit the rungs. Ensure to drill accurately to avoid unintended consequences.
Step 4
Using a hammer, carefully insert the rungs at the designated spots until they are securely in place.
Step 5
Now, the installation process is completed and ready to be used. Rungs can resist tensile forces greater than 800 kg if the installation is done accurately.
