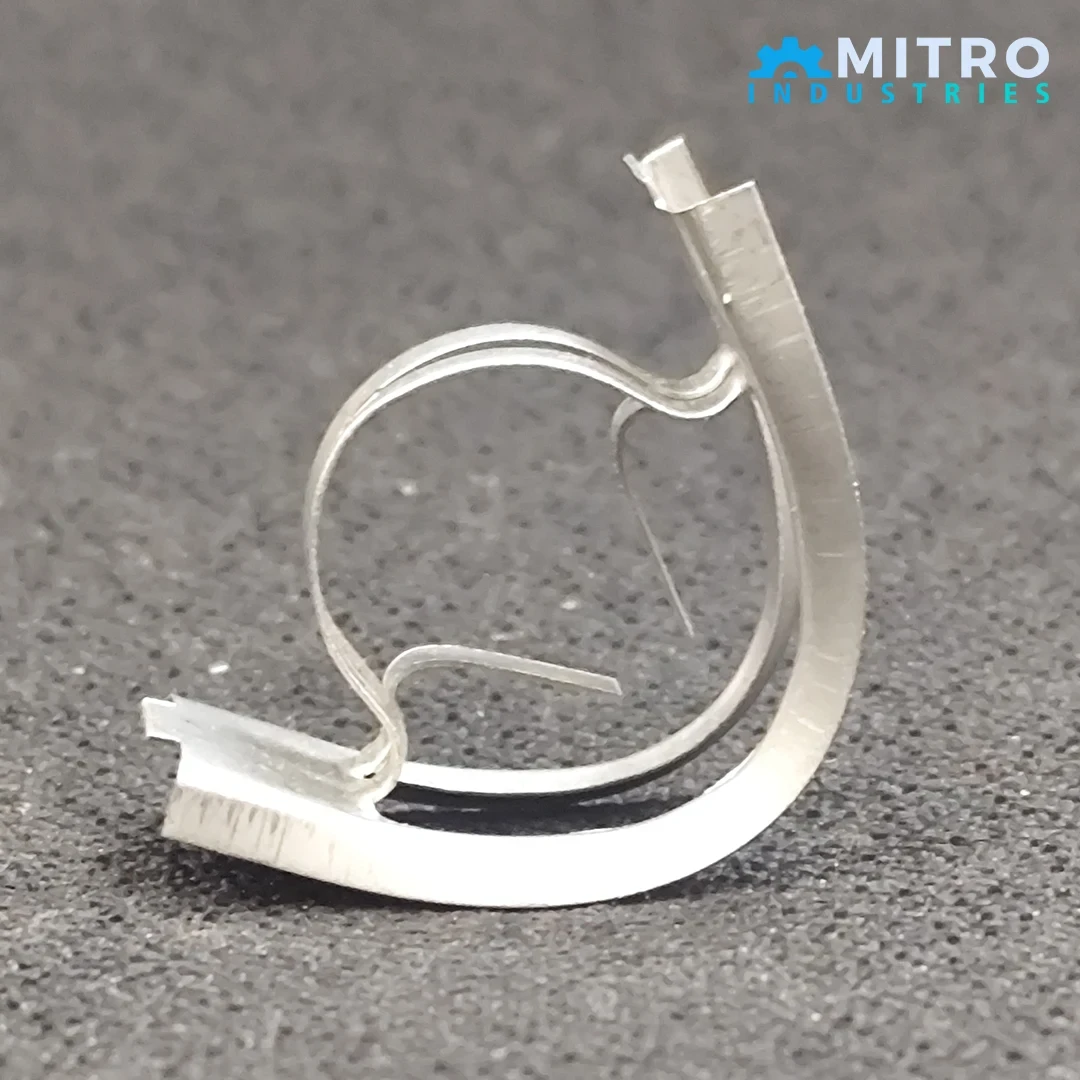

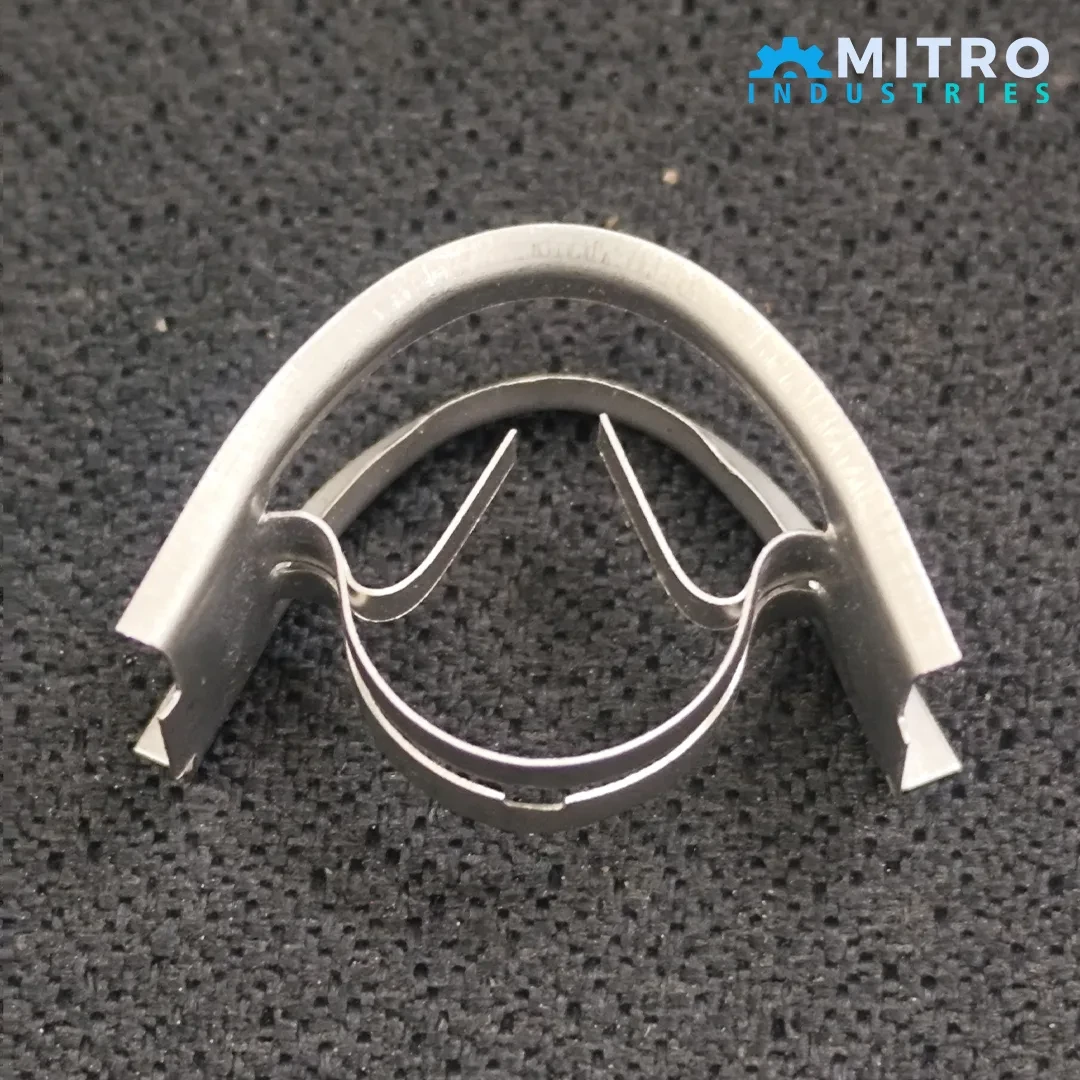

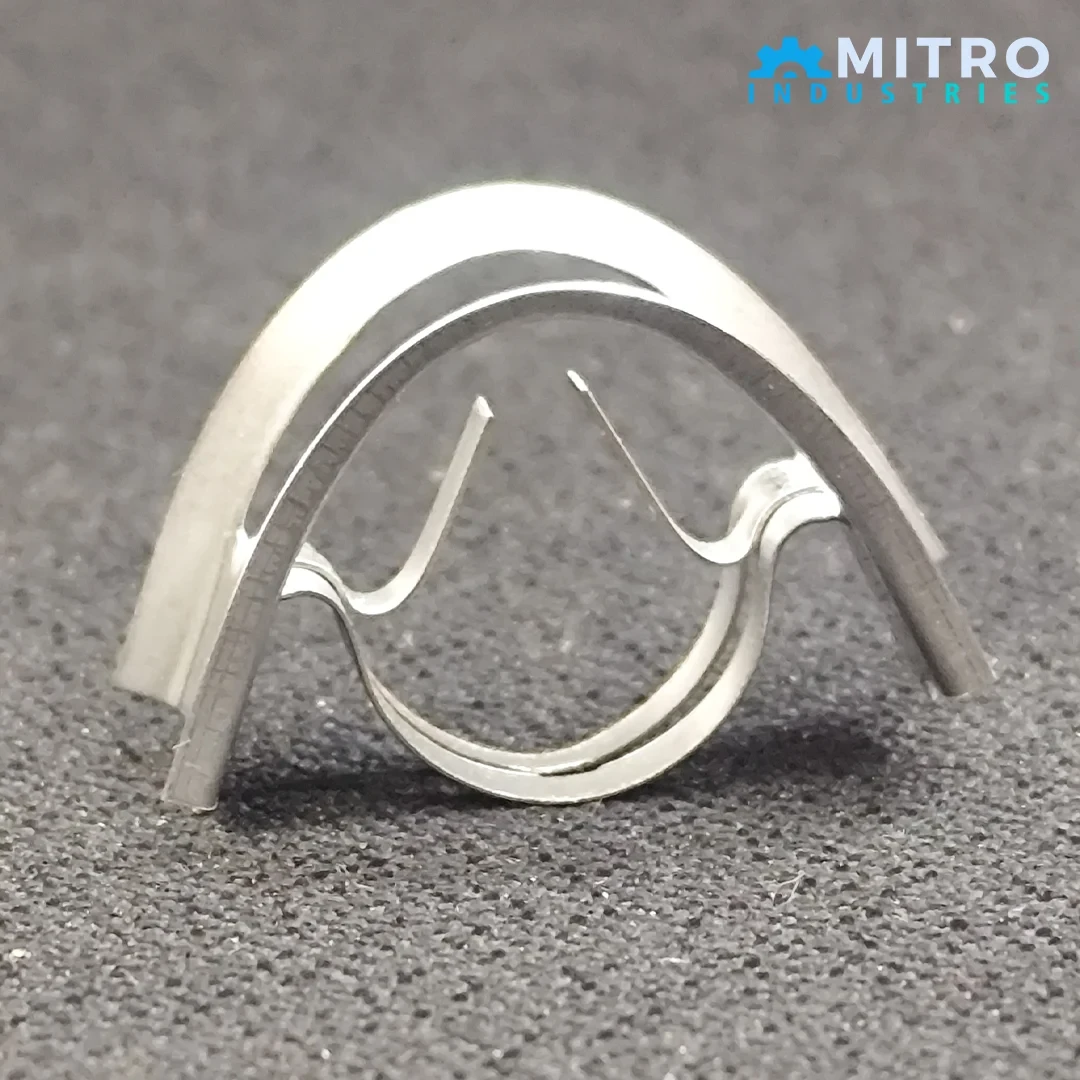

SS Intalox Saddle

Stainless steel (SS) Intalox saddle is a widely used random packing element in mass transfer equipment such as distillation, absorption, and stripping columns. It represents an advanced development over earlier packings like Raschig rings and Berl saddles, combining improved efficiency with lower pressure drop.


Intalox saddle is a third-generation random packing designed to enhance gasliquid contact inside process towers. Its geometry combines the features of both ring-type and saddle-type packings, resulting in improved hydrodynamics and mass transfer perance.


The SS variant refers to stainless steel construction (commonly SS 304, SS 316, or SS 316L), which provides high strength, corrosion resistance, and thermal stability.


Construction and GeometryThe SS Intalox saddle has a distinct curved shape.


Upper surface - elliptical curvature .Lower surface - semi-circular curvature .Open structure with no flat surfaces .


This geometry Prevents nesting and channeling .Promotes random orientation in the packed bed .Creates multiple flow paths for gas and liquid.

Minimum Order Quantity	1200  PCS
Production Capacity	10000000  PCS/Month
Delivery Time	Within 7 Days
Packaging Details	Packed in White LDPE Bag.
