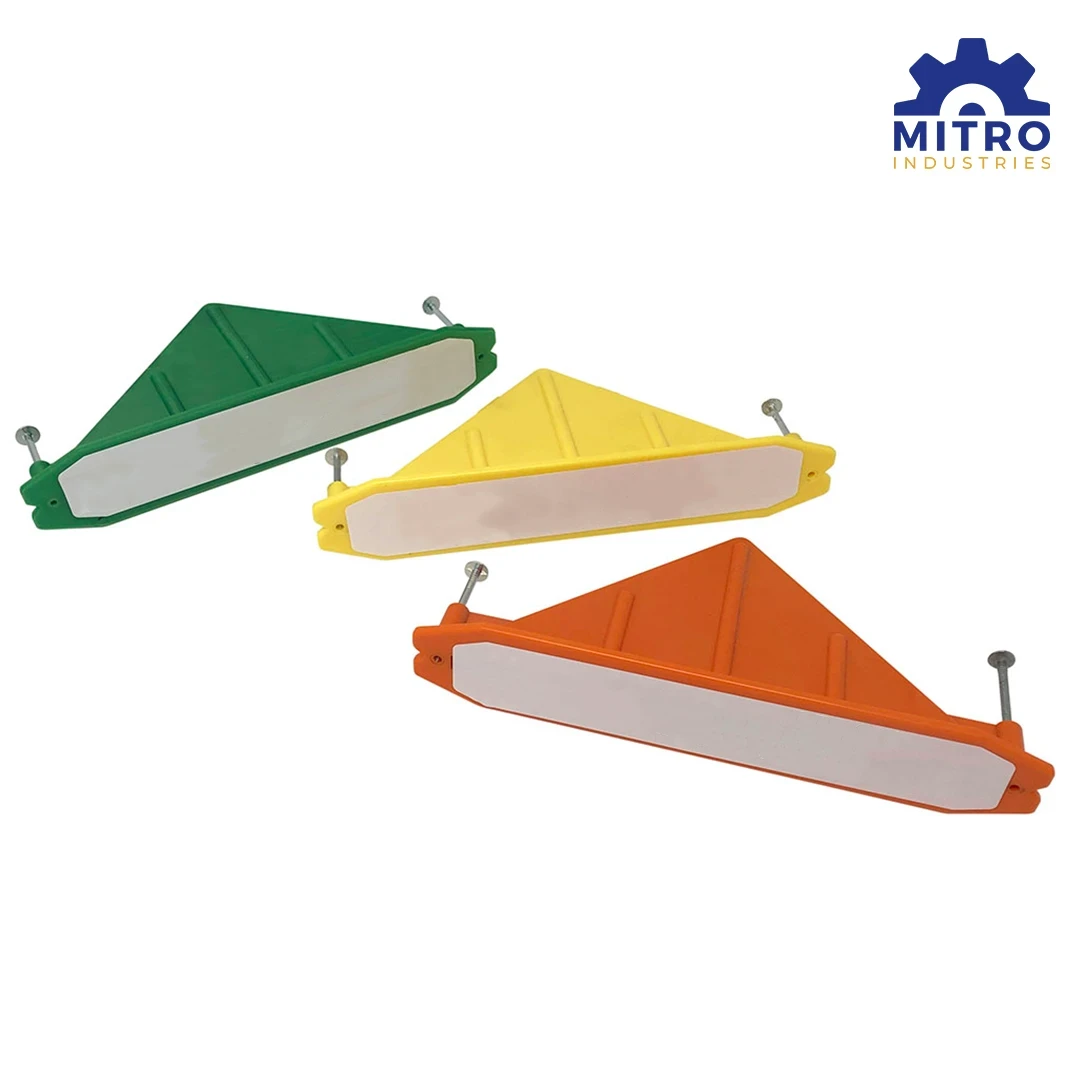

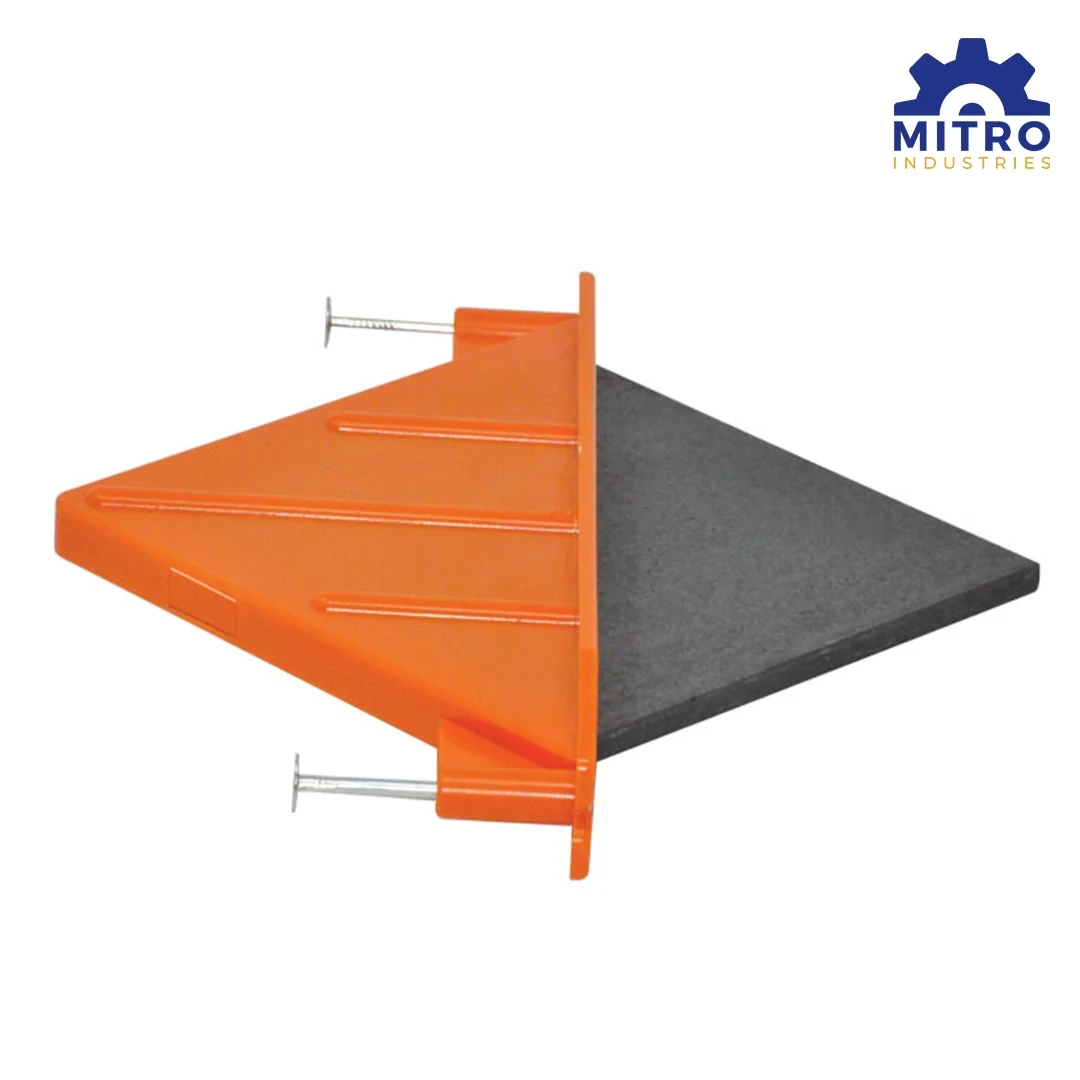

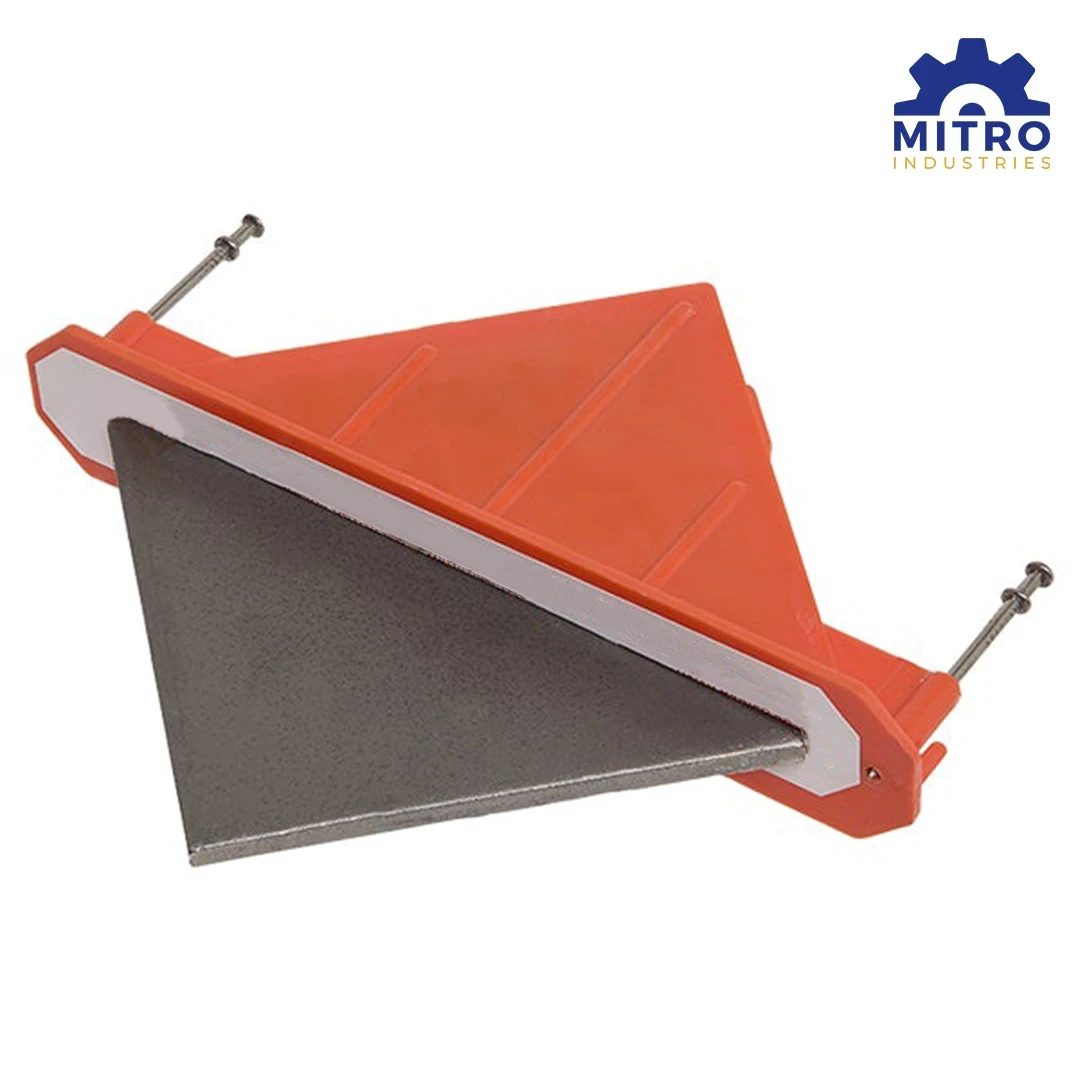

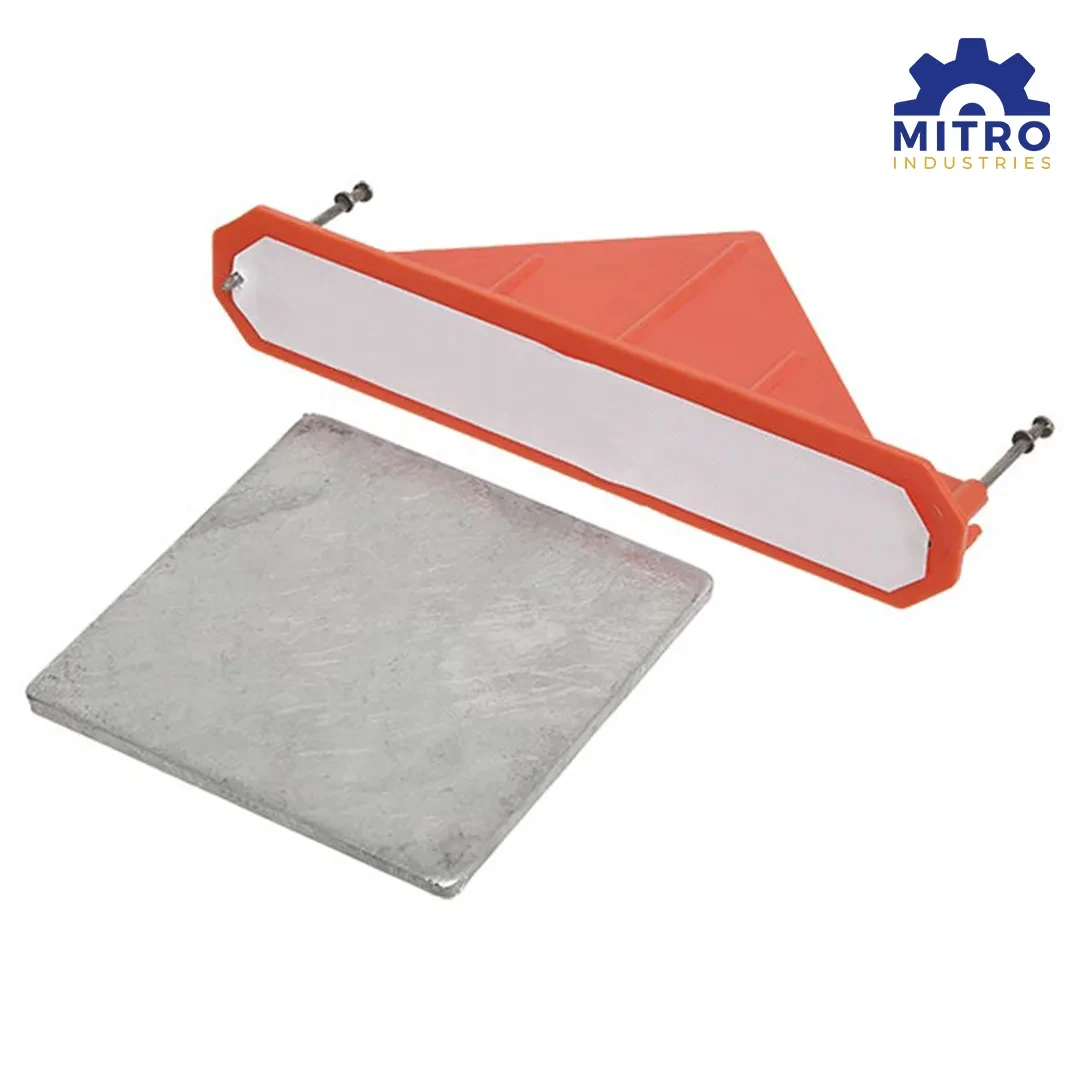

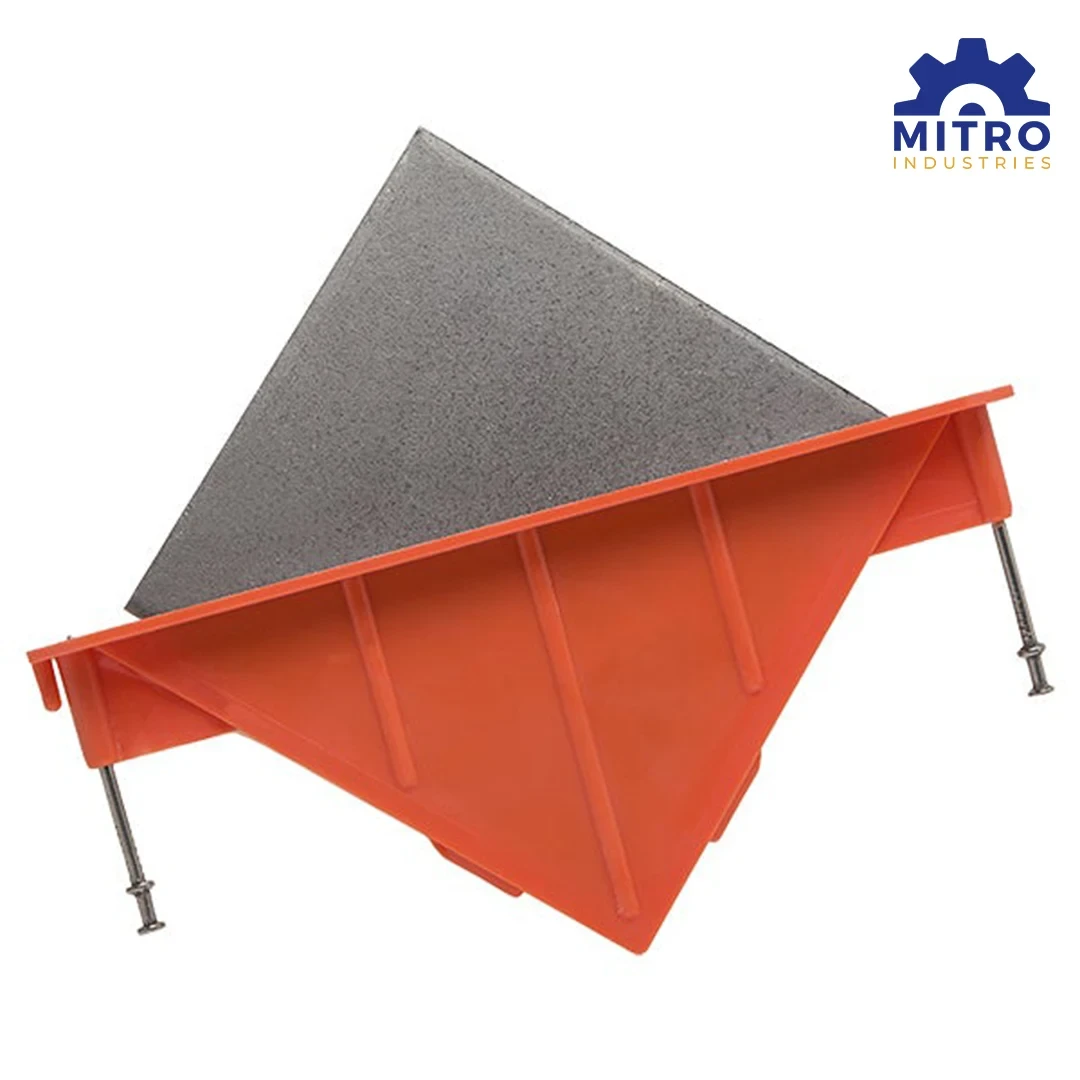

Diamond Dowel Sleeve and Plate

Diamond Dowels are designed for use in construction joints within concrete slabs and pavements. These plate dowels efficiently transfer vertical loads through the joint, reducing differential deflection between neighboring slab panels when under load. Simple to install, they easily attach to wooden boards or l separation plates. Each package includes all necessary components for quick and convenient installation.
Diamond Dowels are highly favored for their quick, easy, and cost-effective installation. Specifically designed for slabs on the ground, they eliminate the need for drilling holes in timber work. Simply attach the dowel sleeve to the work on the first side, pour the concrete, remove the work, and then insert the dowel plates into the sleeves before pouring the second side.
Benefits
Durable, efficient load transfer.Allows horizontal slab movement in two directions.Does not permit vertical slab movement.Quick and easy to install no need to drill timber work.Safe on site, as there are no protruding dowel plates during the pour.Minimal chance of damage to the dowel plates on site, as they are installed just prior to the second pour.
The Diamond Dowel System sets the industry standard for construction joints, providing exceptional joint stability with measurements of 0.01 in (25 mm). It ensures long-lasting, maintenance-free, and durable concrete flatwork. With this proven system, you can maximize material efficiency, lower labor costs, enhance worker safety, and reduce the risk of joint spalling and random cracking.
Useful for construction joints in
Concrete slabs on grade.Concrete pavement.Concrete flatwork exposed to pedestrian traffic.
The Diamond Dowel System offers the joint stability, reliable load transfer, and consistent surface profile that projects require. It includes the tapered plate dowel, pocket er, and installation template. The tapered plates in the Diamond Dowel System come in three different sizes to suit various project needs.

Minimum Order Quantity	50  SET
Production Capacity	100000  SET/Month
Delivery Time	Within 7 Days
Packaging Details	Packed in gunny bags
